Leviton

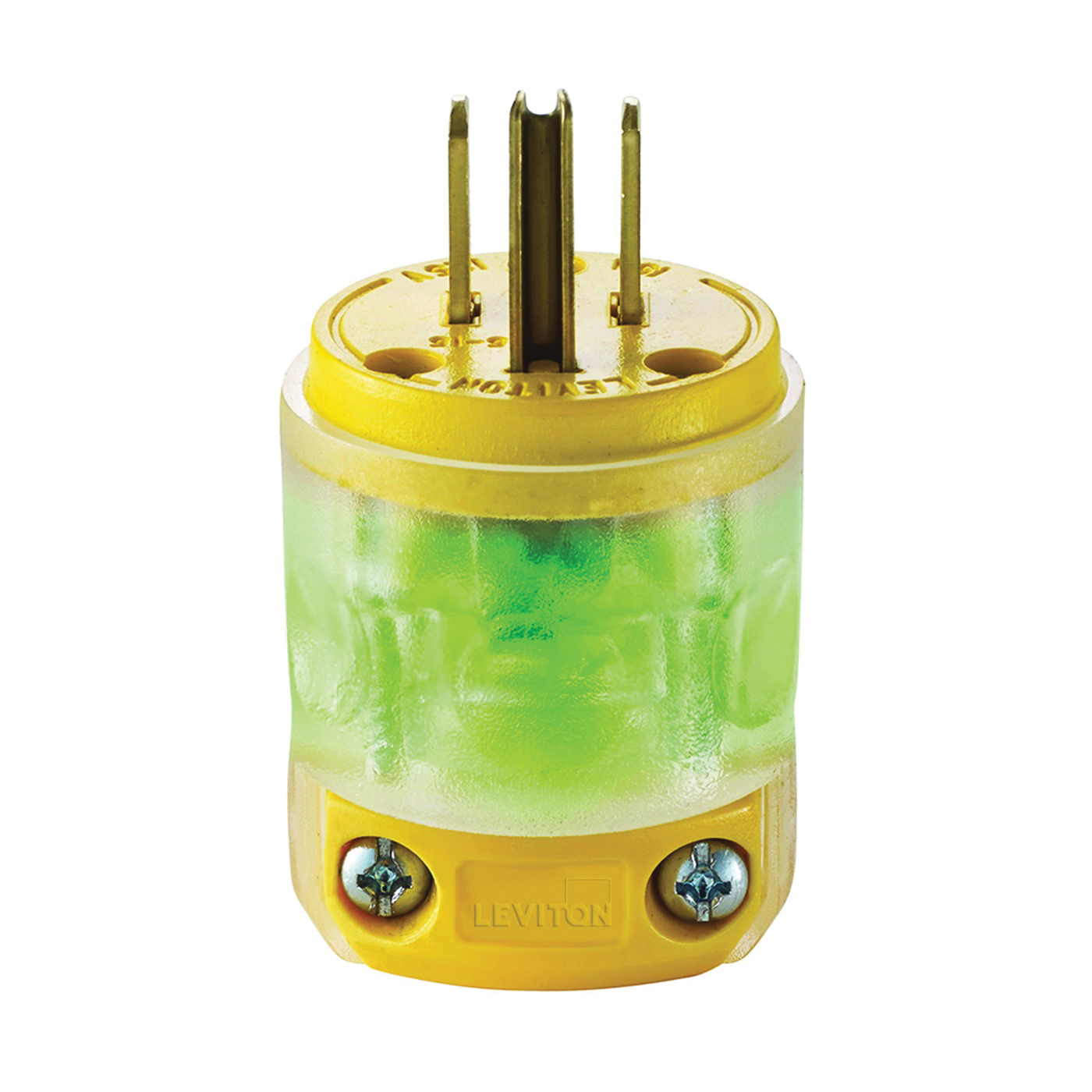

Leviton R50-515PV-LIT Electrical Plug, 2 -Pole, 15 A, 125 V, NEMA: NEMA 5-15P, Transparent Yellow
- Cable/Wire Size: 15/64 to 21/32 in
- Color: Transparent Yellow
- Current Rating: 15 A
- Grounding Type: Grounded
- Material: PVC
- Model #: R50-515PV-LIT
- UPC #: 078477674857
- SKU: 47767485
Product Details
Lighted plug, 15 A, 125 V, NEMA 5-15P, 2-pole, 3-wire plug, straight blade. UL listed and CSA certified.Key Features
- Green light indicates power is flowing through to the cord
- Accepts AWG SJ 16/3
- Rugged PVC plug and connector (515PV/515CV) resists moisture and chemicals
- Unique dimpled body provides a secure hinge grip
- Built-in cord grip adjusts automatically for use with 18 to 12 AWG
Item Specifications
| Cable/Wire Size | 15/64 to 21/32 in |
|---|---|
| Color | Transparent Yellow |
| Current Rating | 15 A |
| Grounding Type | Grounded |
| Material | PVC |
| NEMA Configuration | NEMA 5-15P |
| Number of Poles | 2 |
|---|---|
| Number of Wires | 3 |
| Operating Temperature | -40 to 60 deg C |
| Type | Straight Blade |
| Voltage Rating | 125 V |
MORE DETAILS:
- Leviton_100067121_Specification_Sheet.pdf
- Application: For indoor, outdoor and replacement of plugs on tools, appliances and extension cords
- Warranty: 2 Year Limited
