- Finish: Galvanized
- Height: 8-3/4 in
- Includes: (14) 1/4 x 2 in SDS Screws
- Material: Steel
- Post Size: 6 x 6 in
- Model #: CBSQ66SDS2
- UPC #: 707392483502
- SKU: 39248350

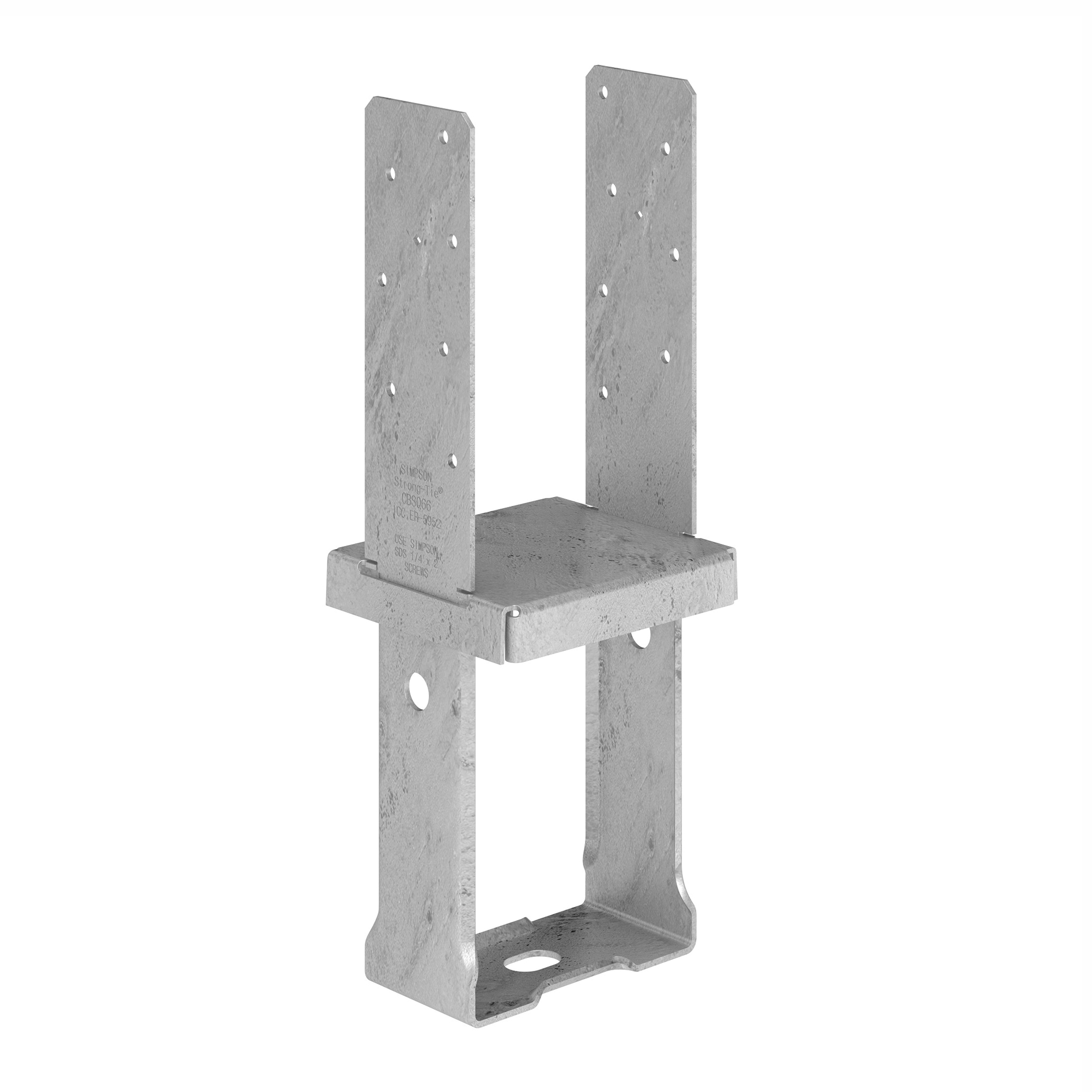

The CBSQ is designed to be the interface between columns and their foundations. The main function of this column base is to link the column to the concrete footing surface and thereby transmit the structure's stresses to the foundation. The CBSQ uses Strong-Drive® SDS heavy-duty connector screws (included), which allow for fast installation and reduced reveal and provide a greater net section area of the column than bolts.
| Finish | Galvanized |
|---|
| Height | 8-3/4 in |
|---|
| Includes | (14) 1/4 x 2 in SDS Screws |
|---|
| Material | Steel |
|---|
| Post Size | 6 x 6 in |
|---|
| Weight Capacity | 14,420 lb Down, 3060 lb Cracked Uplift, 4375 Uncracked |
|---|
| Width | 5-1/2 in |
|---|
