- Diameter: 3/8 in
- Drill Size: 3/8 in
- Finish: Zinc
- Fixture Thickness: 1/2 to 9/16 in
- Head Type: Hex
- Model #: THD37500H
- UPC #: 707392175308
- SKU: 100319965

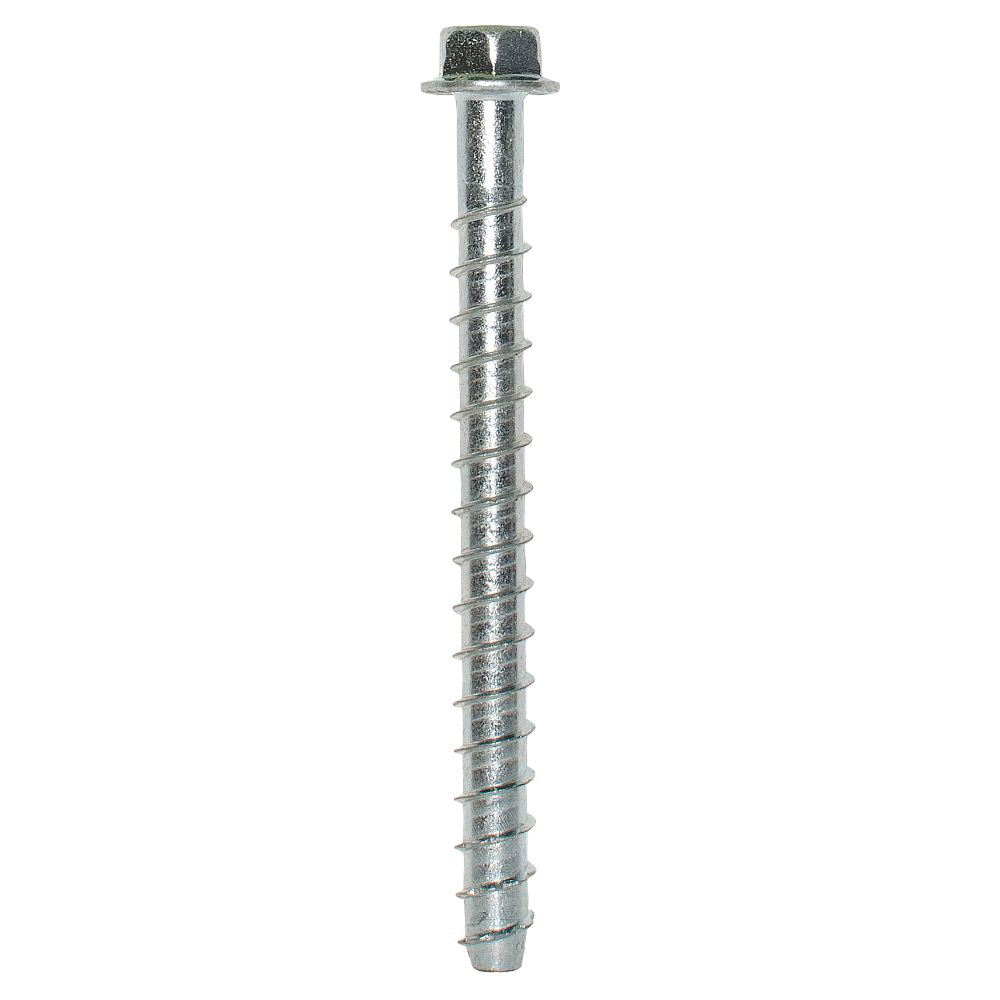

The original high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titan HD® offers low installation torque and outstanding performance. Designed and tested in dry, interior, non-corrosive environments or temporary outdoor applications, the Titan HD® demonstrates industry leading performance even in seismic conditions. The stainless-steel Titan HD® is the optimal choice for applications in corrosive or extreme environments such as salt water or when chemical or corrosive solutions are present.
| Diameter | 3/8 in |
|---|
| Drill Size | 3/8 in |
|---|
| Finish | Zinc |
|---|
| Fixture Thickness | 1/2 to 9/16 in |
|---|
| Head Type | Hex |
|---|
| Length | 5 in |
|---|
| Material | Carbon Steel |
|---|
| Minimum Clearance | 1/2 in |
|---|
| Minimum Concrete Thickness | 4 to 5 in |
|---|
| Tensile Strength | 110000 psi |
|---|
