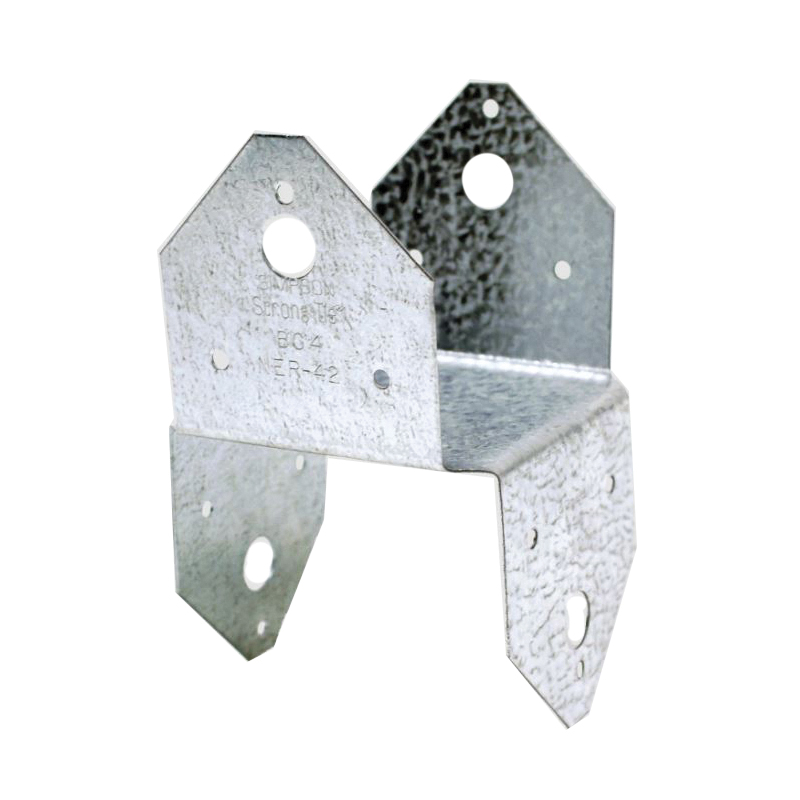

Simpson Strong-Tie BC Series BC4 Post Cap, 1000 lb Lateral, 605 lb Uplift, Steel, Galvanized

Simpson Strong-Tie

Simpson Strong-Tie BC Series BC4 Post Cap, 1000 lb Lateral, 605 lb Uplift, Steel, Galvanized

Simpson Strong-Tie BC Series BC4 Post Cap, 1000 lb Lateral, 605 lb Uplift, Steel, Galvanized
  • Fastener Type: Nail
  • Finish: Galvanized
  • Height: 3 in
  • Length: 2-7/8 in
  • Material: Steel
  • Model #: BC4
  • UPC #: 044315100000
  • SKU: 16864551

Availability

Product Details

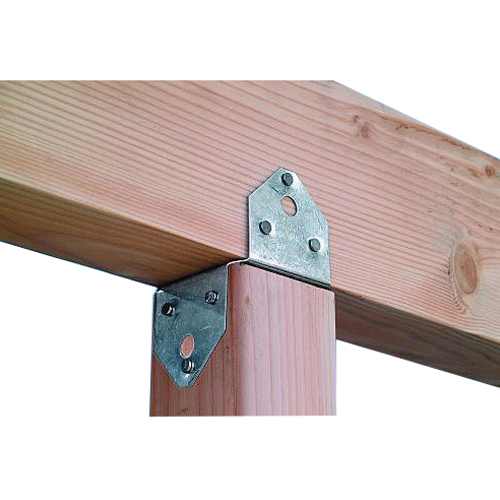

The BC post cap is designed to connect a beam to a post. The 18 ga material of this post cap makes it ideal for light-duty connections. The BC provides uplift and lateral resistance and includes sizes for both nominal and rough lumber.

Item Specifications

Fastener TypeNail
FinishGalvanized
Height3 in
Length2-7/8 in
MaterialSteel
Nail Diameter0.162 in
Weight Capacity1000 lb Lateral, 605 lb Uplift
Width3-9/16 in
