Simpson Strong-Tie

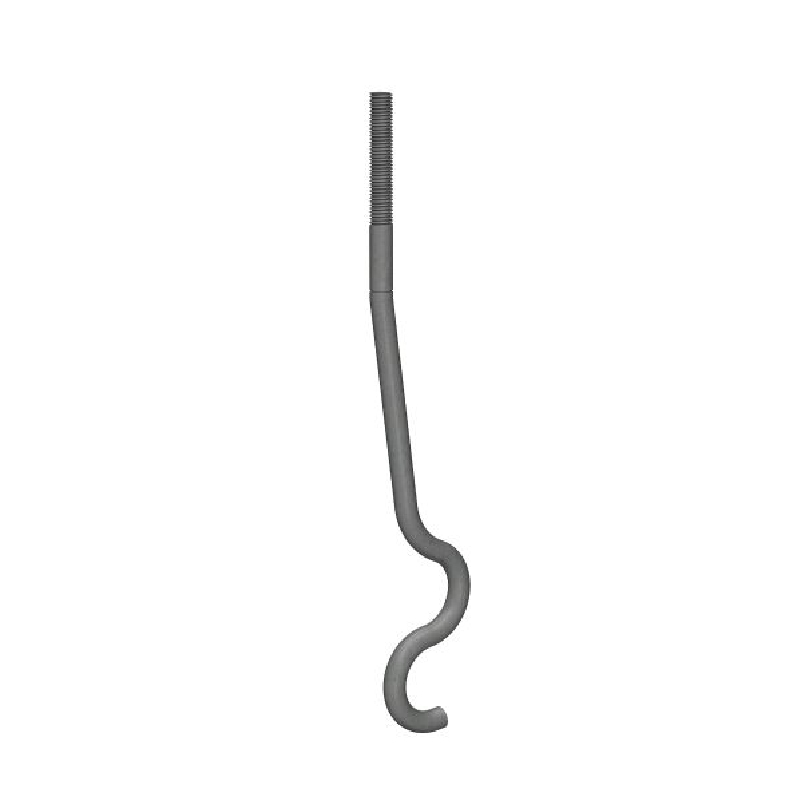

Simpson Strong-Tie SSTB Series SSTB16 Anchor Bolt, 17-5/8 in OAL, Steel, 36 Grade
- Grade: 36
- Head Size: 5/8 in
- Material: Steel
- Overall Length: 17-5/8 in
- Tensile Strength: 3465 lb
- Model #: SSTB16
- UPC #: 044315404214
- SKU: 101860759
Product Details

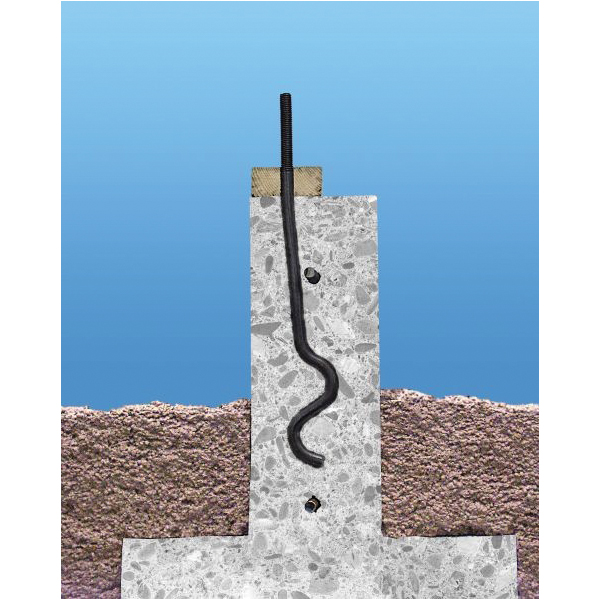

The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie® Strong-Wall® shear walls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications.Item Specifications
| Grade | 36 |
|---|---|
| Head Size | 5/8 in |
| Material | Steel |
| Overall Length | 17-5/8 in |
|---|---|
| Tensile Strength | 3465 lb |
| Thread Length | 3-1/2 in |
