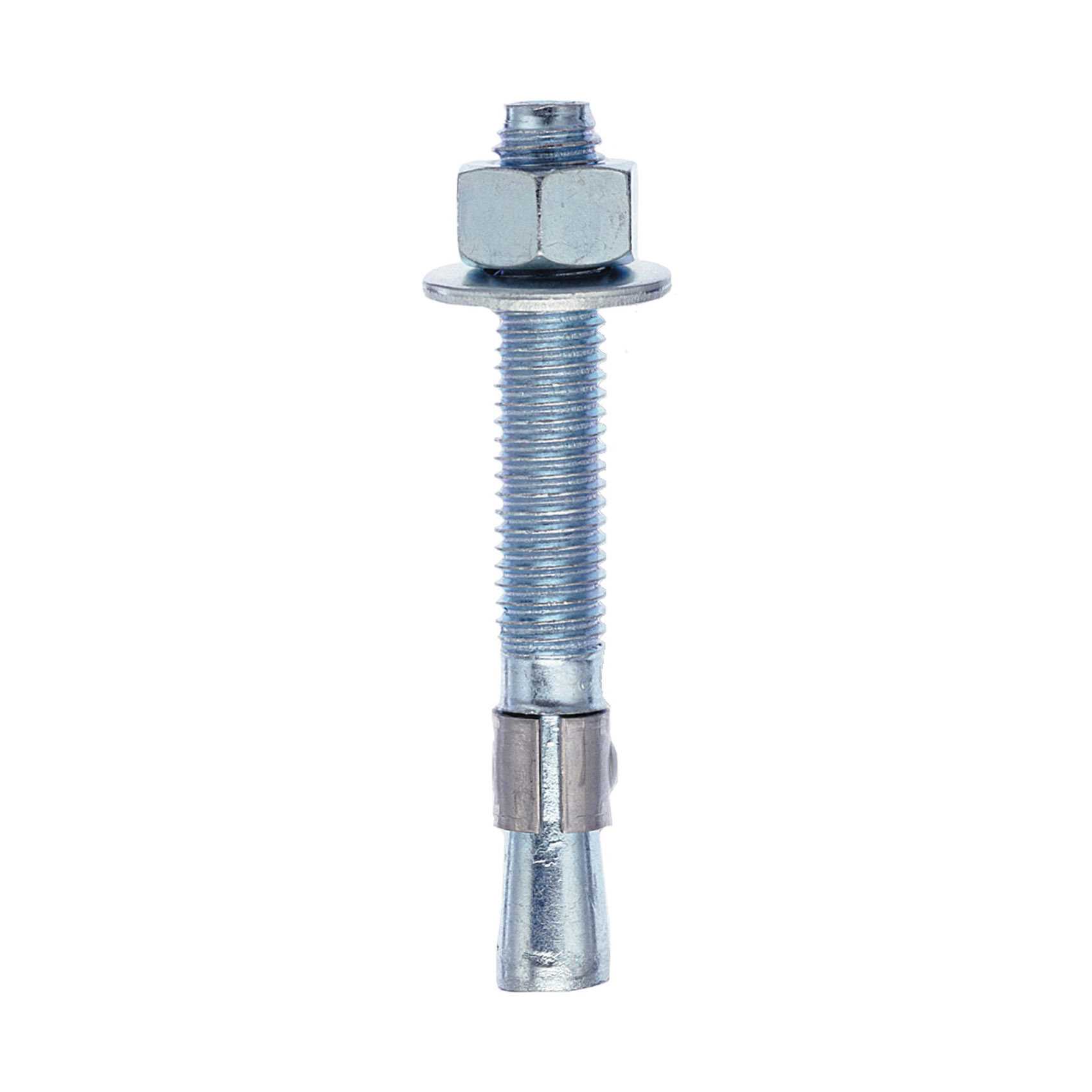

Red Head TruBolt WS-1226 Heavy-Duty Wedge Anchor, 1/2 in Dia, 2-3/4 in L, Carbon Steel, Zinc
- Diameter: 1/2 in
- Finish: Zinc
- Fixture Thickness: 1/8 in
- Length: 2-3/4 in
- Material: Carbon Steel
- Model #: WS-1226
- SKU: 19409817
Product Details
Trubolt® wedge anchors feature a stainless steel expansion clip, threaded stud body, nut and washer. Anchor bodies are made of plated carbon steel, hot dipped galvanized carbon steel, type 304 stainless steel or type 316 stainless steel as identified in the drawings or other notations. The exposed end of the anchor is stamped to identify anchor length. Stampings should be preserved during installation for any subsequent embedment verification.Item Specifications
| Diameter | 1/2 in |
|---|---|
| Finish | Zinc |
| Fixture Thickness | 1/8 in |
| Length | 2-3/4 in |
| Material | Carbon Steel |
|---|---|
| Minimum Embedment Depth | 2-1/4 in |
| Screw Size | 1/2-13 |
| Thread Length | 1-1/4 in |
MORE DETAILS:
- RED_HEAD_103355310_Instruction_Installation_Manual.pdf
- RED_HEAD_103355310_Catalog.pdf
- Application: For anchoring to concrete, structural columns, machinery and equipment
