- Backset Size: 2-3/8, 2-3/4 in
- Backset Type: Adjustable
- Commercial/Residential: Residential
- Cross Bore Diameter: 2-1/8 in
- Cylinder Type: 5-Pin
- Model #: 980 11P SMT CP K4 V1
- UPC #: 883351640756
- SKU: 3177185

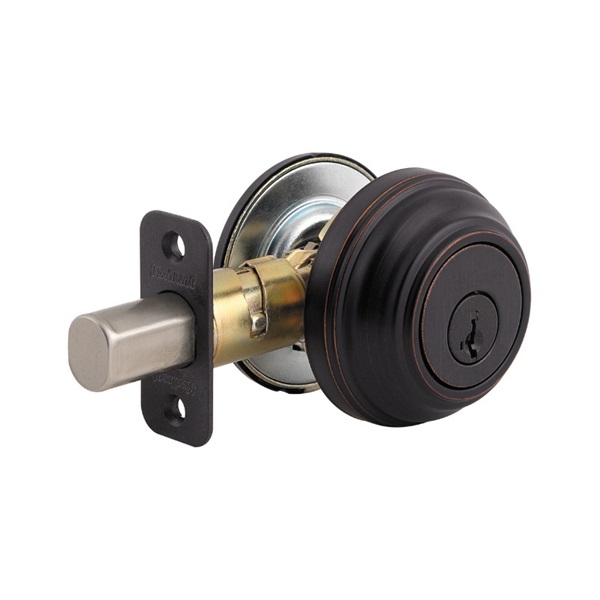

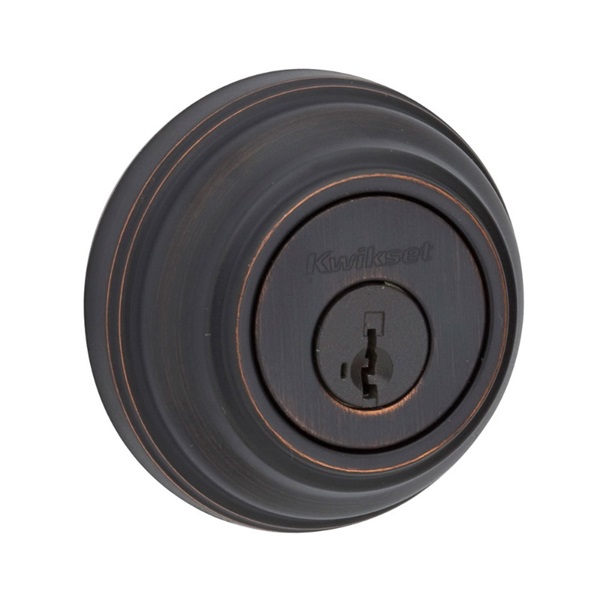

At Kwikset, we believe people shouldn't have to settle when it comes to home security. And the best security is smart security. The Kwikset Signature series 980 deadbolt is both tough and attractive. It is BHMA/ANSI grade 1 certified, the highest level of residential security.
| Backset Size | 2-3/8, 2-3/4 in |
|---|
| Backset Type | Adjustable |
|---|
| Commercial/Residential | Residential |
|---|
| Cross Bore Diameter | 2-1/8 in |
|---|
| Cylinder Type | 5-Pin |
|---|
| Design | Transitional |
|---|
| Dimensions | 2-5/8 in H |
|---|
| Door Handing | Reversible |
|---|
| Door Thickness | 1-3/8 to 1-3/4 in |
|---|
| Edge Bore Diameter | 1 in |
|---|
| Finish | Venetian Bronze |
|---|

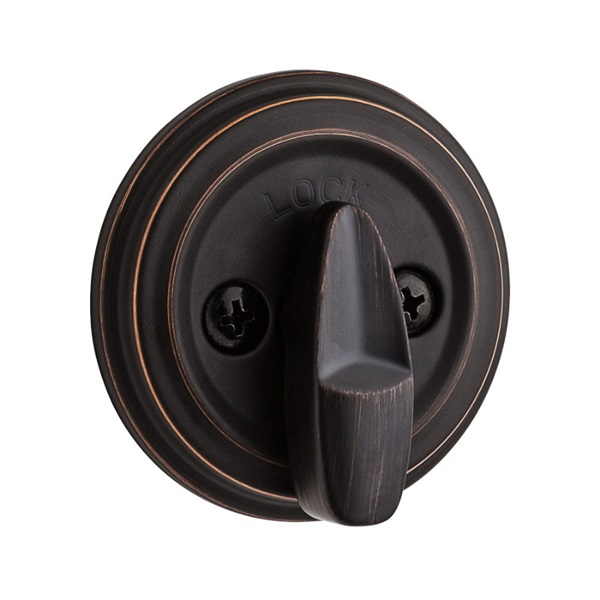

| Interior Locking | Turn Piece |
|---|
| Key Type | Keyed |
|---|
| Keyway Type | KW1 |
|---|
| Material | Zinc |
|---|
| Number of Cylinders | 1 |
|---|
| Projection Size | 1-1/32 in Exterior, 1-5/32 in Interior |
|---|
| Re-Key Technology | SmartKey |
|---|
| Security Grade | 1 |
|---|
| Throw Length | 1 in |
|---|
| Type | One-Sided |
|---|
