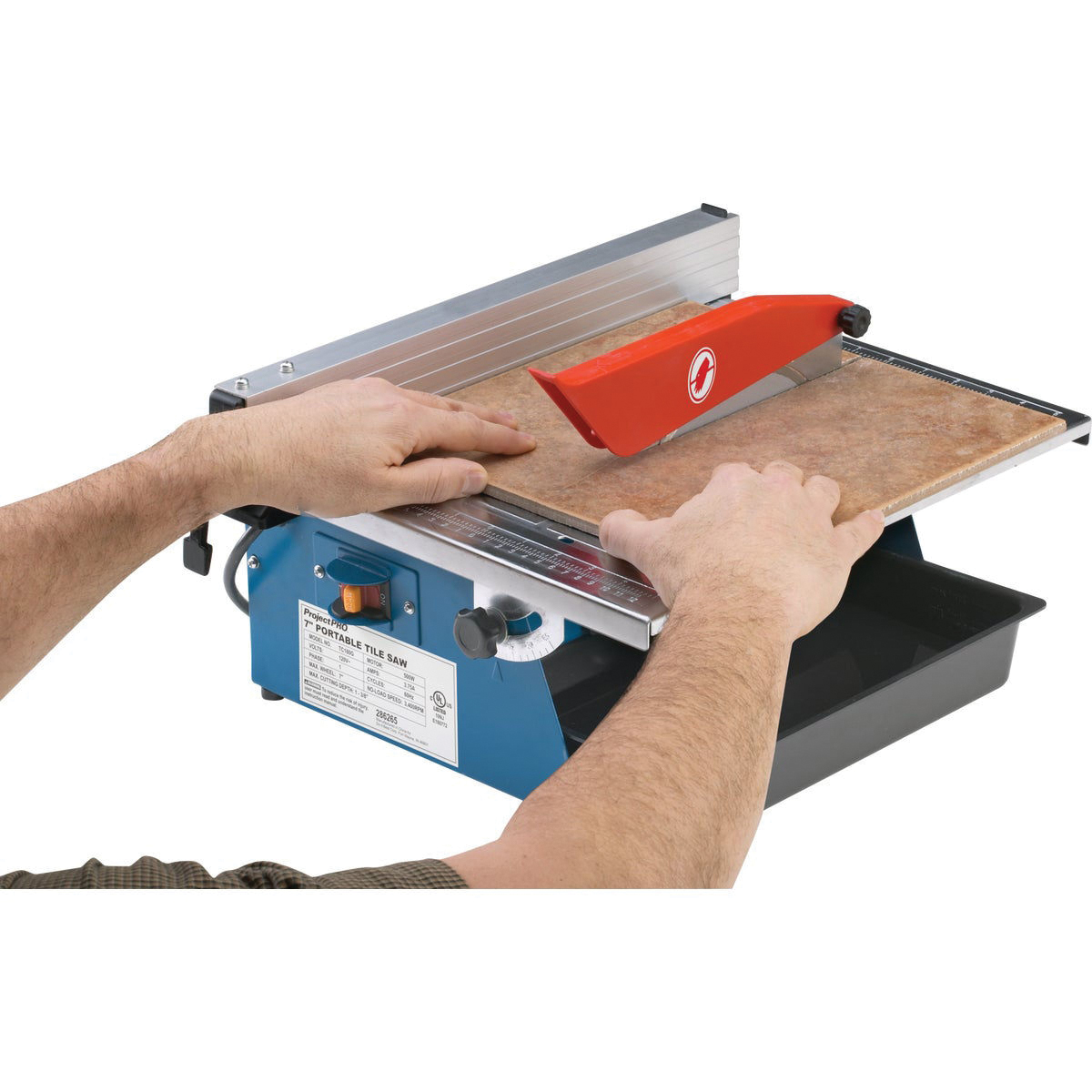

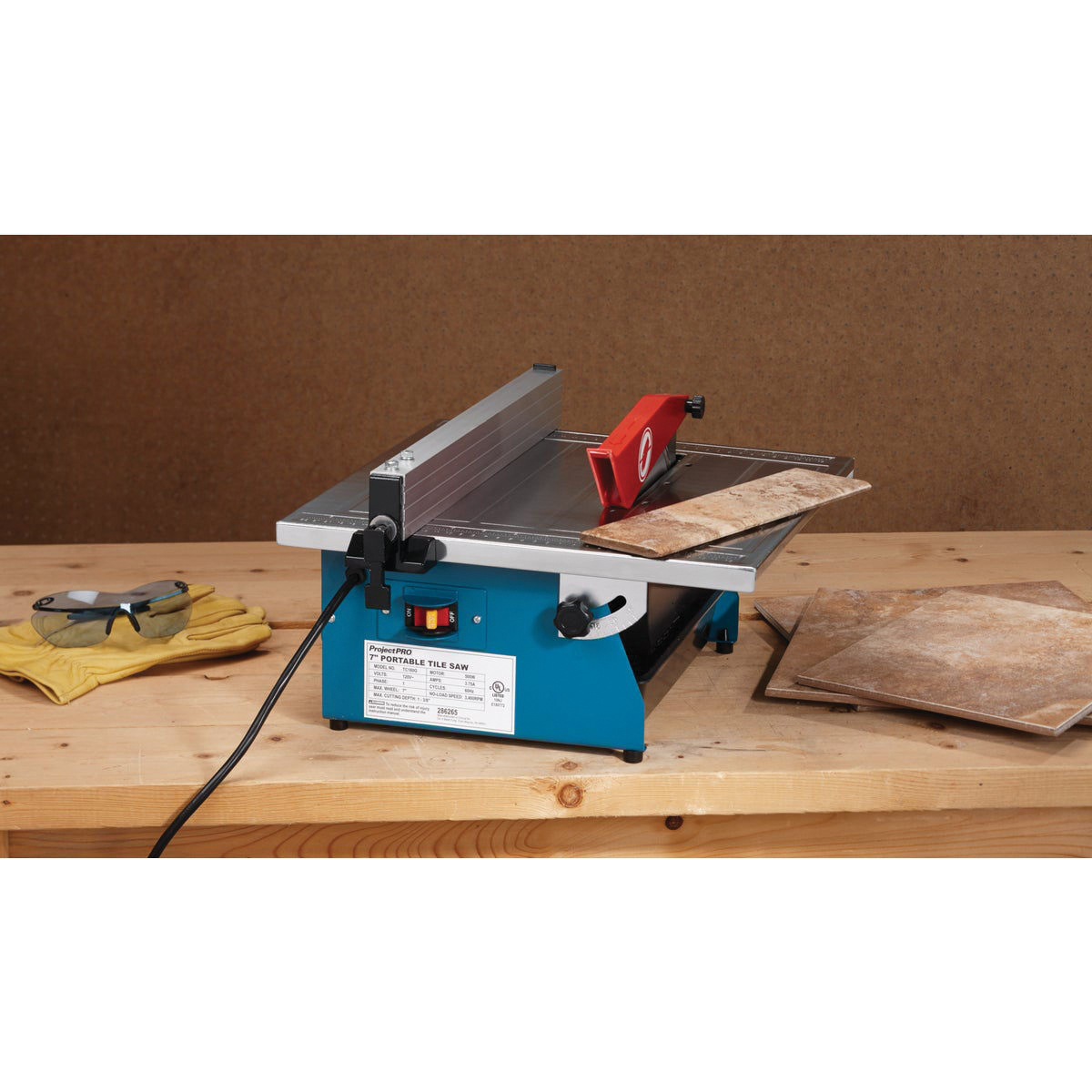

Ideal for linear and a wide variety of angled cuts. Adjustable cutting table raises with set positions enabling 15 deg, 30 deg, 45 deg and 60 deg precision cuts. Equipped with 7 in continuous rim diamond blade. High-output, direct drive, 1/3 hp motor, 120 V/60 Hz, 3.75 A, speed 3400 rpm. Adjustable linear guide enables left and right hand usage. Water overflow from cuts is channeled from the cutting table top and returned to the water reservoir. Features automatic thermal overload system protection. Housing made of anti-fire plastic material. 34 mm (90 deg), 21 mm (45 deg).
| Amp Rating | 3.75 A |
|---|
| Arbor Size | 5/8 in |
|---|
| Blade Diameter | 7 in |
|---|
| Cutting Depth | 15/16 in |
|---|
| Speed Rating | 3400 rpm |
|---|
