- Diameter: 3/8 in
- Drill Size: 3/8 in
- Finish: Zinc-Plated
- Head Type: Hex Washer
- Length: 6 in
- Model #: THD37600H
- UPC #: 707392402718
- SKU: 19418526

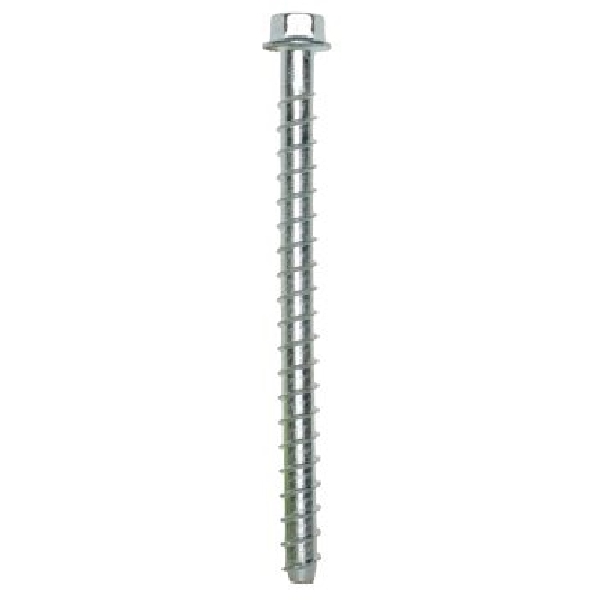

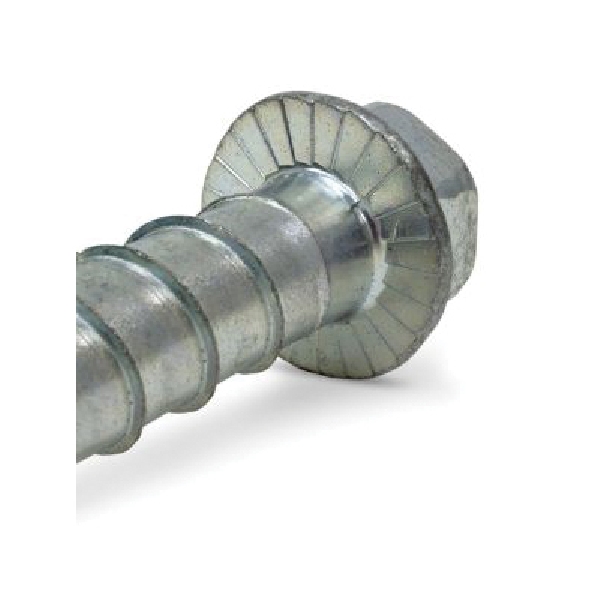

The original high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. Designed and tested in dry, interior, non-corrosive environments or temporary outdoor applications, the Titen HD demonstrates industry-leading performance even in seismic conditions.
| Diameter | 3/8 in |
|---|
| Drill Size | 3/8 in |
|---|
| Finish | Zinc-Plated |
|---|
| Head Type | Hex Washer |
|---|
| Length | 6 in |
|---|
| Material | Carbon Steel |
|---|
| Minimum Concrete Thickness | 4 in |
|---|
| Minimum Embedment Depth | 2-3/4 in |
|---|
| Post/Joist Size | 1/2 to 9/16 in |
|---|
| Shear Strength | 4460 lb |
|---|
| Tensile Strength | 10,890 lb |
|---|
