- Body Material: Lead-Free Bronze
- Connection Size: 1 in
- Connection Type: Double Union NPT
- Dimensions: 6.17 in L x 5.4 in H
- Media: Water
- Model #: 285072
- UPC #: 697285231566
- SKU: 28523156

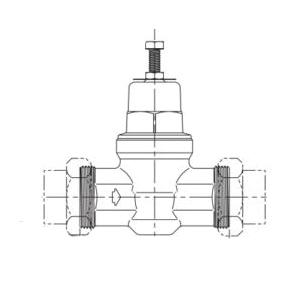

The EB-45 series is a lead-free half cartridge-based pressure reducing and regulating valve with a bronze body. The valve construction is similar to a traditional regulator in that it retains a separate spring chamber and adjusting screw, but offers the simplicity and maintenance benefits of a cartridge-based valve. The EB-45 is assembled using modular construction methods and features end connections threaded for both FIP and union 1 in through 2 in sizes. A connection for a pressure gauge is also available for 3 in and 1 in models. The EB-45 is intended for use where supply line pressure does not exceed 300 psi (400 psi 1/2 in, 3/4 in and 1 in). The EB-45 pressure regulators are supplied by the factory with a standard delivery setting of 45 psi. The outlet pressure can be adjusted from 10 to 70 psi without changing the spring. This regulator is suited for either cold or hot (to 180 deg F) water service.
| Body Material | Lead-Free Bronze |
|---|
| Connection Size | 1 in |
|---|
| Connection Type | Double Union NPT |
|---|
| Dimensions | 6.17 in L x 5.4 in H |
|---|
| Media | Water |
|---|
| Operating Pressure | 400 psi |
|---|
| Regulating Pressure | 45 psi |
|---|
| Softgoods Material | EPDM |
|---|
| Temperature Rating | 33 to 180 deg F |
|---|
| Trim Material | Brass/Stainless Steel |
|---|
