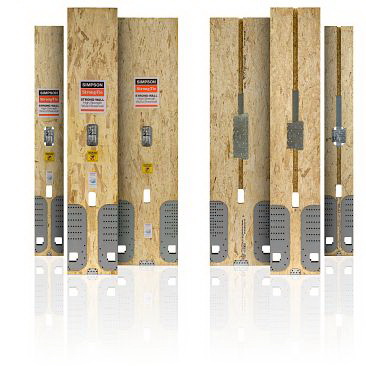

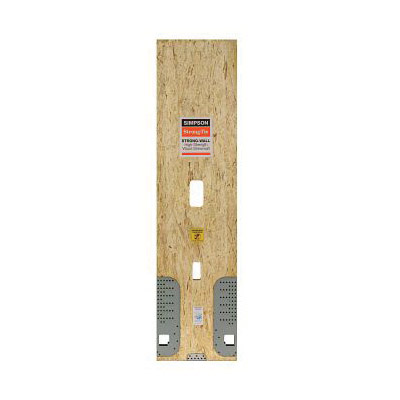

Simpson Strong-Tie WSWH Series WSWH24X9 Shearwall, 24 in W, 108 in H, 3-1/2 in Thick, Lumber, 2-Anchor, 1 in Anchor

Simpson Strong-Tie

Simpson Strong-Tie WSWH Series WSWH24X9 Shearwall, 24 in W, 108 in H, 3-1/2 in Thick, Lumber, 2-Anchor, 1 in Anchor

Simpson Strong-Tie WSWH Series WSWH24X9 Shearwall, 24 in W, 108 in H, 3-1/2 in Thick, Lumber, 2-Anchor, 1 in Anchor
  • Anchor Bolt Diameter: 1 in
  • Height: 108 in
  • Includes: (2) Heavy Hex Nuts, (2) Heavy Bearing Plates, Preattached Holdowns, SWS16150 Strong-Wall Screws, Strong-Drive SDS25600 Heavy-Duty Connector Screws, T25 Six-Lobe Driver Bit and WSWH-TP Top Connection Plate
  • Material: Lumber
  • Number of Anchor Bolts: 2
  • Model #: WSWH24X9
  • SKU: 19427610

Availability

Product Details

The Strong-Wall® WSWH high-strength wood shearwall is a prefabricated engineered wood panel that helps structures resist forces resulting from high-wind and earthquakes. Combining design flexibility with performance, this code listed shearwall is field adjustable with the ability to be trimmed and drilled onsite and can be customized to accommodate varying heights or rake walls. The WSWH features patented wood fuse technology that provides predictable behavior and delivers great strength, stiffness, ductility and design values.

Item Specifications

Anchor Bolt Diameter1 in
Height108 in
Includes(2) Heavy Hex Nuts, (2) Heavy Bearing Plates, Preattached Holdowns, SWS16150 Strong-Wall Screws, Strong-Drive SDS25600 Heavy-Duty Connector Screws, T25 Six-Lobe Driver Bit and WSWH-TP Top Connection Plate
MaterialLumber
Number of Anchor Bolts2
Thickness3-1/2 in
Width24 in
