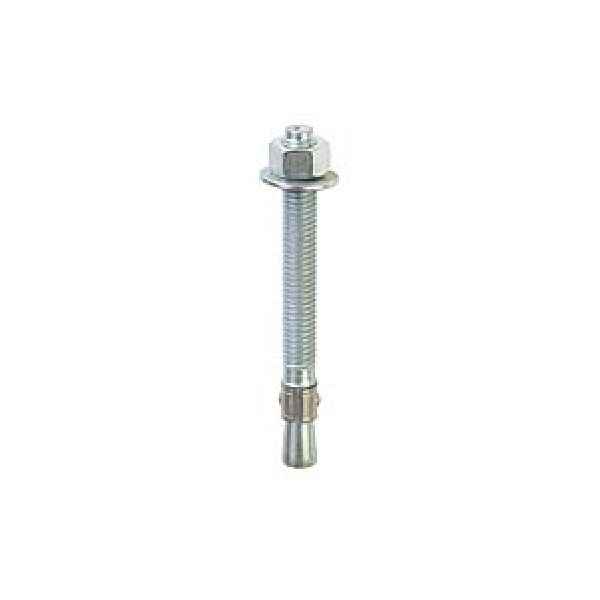

Red Head TruBolt WS-1242 Wedge Anchor, 1/2 in Dia, 4-1/4 in L, Steel, Zinc
- Diameter: 1/2 in
- Finish: Zinc
- Fixture Thickness: 1-1/2 in
- Length: 4-1/4 in
- Material: Steel
- Model #: WS-1242
- SKU: 19409819
Product Details
TruBolt Wedge anchors feature a stainless steel expansion clip, threaded stud body, nut and washer. Anchor bodies are made of plated carbon steel, hot-dipped galvanized carbon steel, type 304 stainless steel or type 316 stainless steel as identified in the drawings or other notations. TruBolt+ Wedge anchors consist of a high-strength threaded stud body, expansion clip, nut and washer. Anchor bodies are made of plated carbon steel. The expansion clip consists of a split cylindrical ring with undercutting grooves. The exposed end of the anchor is stamped to identify anchor length. Stampings should be preserved during installation for any subsequent embedment verification.Item Specifications
| Diameter | 1/2 in |
|---|---|
| Finish | Zinc |
| Fixture Thickness | 1-1/2 in |
| Length | 4-1/4 in |
| Material | Steel |
|---|---|
| Minimum Embedment Depth | 2-1/4 in |
| Screw Size | 1/2-13 |
| Thread Length | 2-3/4 in |
MORE DETAILS:
- RED_HEAD_101772178_Catalog.pdf
- Application: For bridge construction, electrical, HVAC and plumbing systems, pipe hanging and machinery mounts, structural supports to concrete, tilt-up construction applications
