John Guest

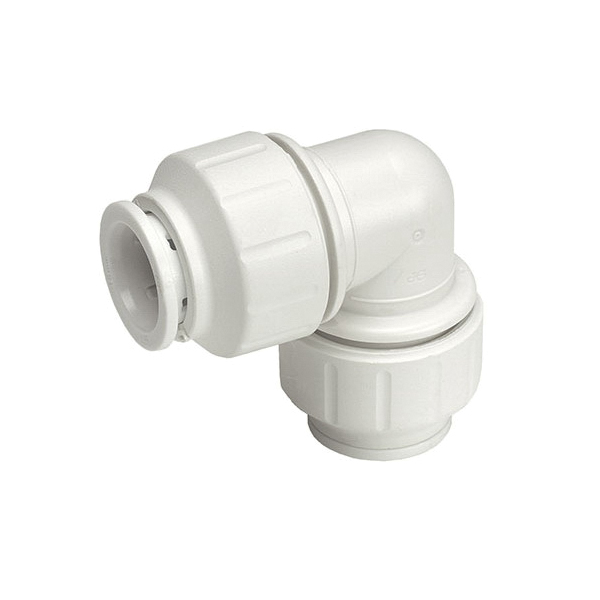

John Guest PEI0328 Union Pipe Elbow, 3/4 in, 90 deg Angle, Plastic, White, 80 to 160 psi Pressure

  • Angle: 90 deg
  • Color: White
  • Material: Plastic
  • Nominal Size: 3/4 in
  • Operating Temperature: -73 to 200 deg F
  • Model #: PEI0328
  • SKU: 16062448

Availability

Product Details

The union elbow is a push-fit plastic fitting for the connection of plastic, copper and CPVC pipe. It was designed, manufactured and assembled by John Guest Speedfit. For use, simply push the fitting fully onto the pipe and twist the plastic nut clockwise to lock in place. Should the need arise to demount the connection unlock the nut and push the collet towards the body of the fitting and pull the pipe to release. The fitting ensures an easier working environment in confined places, is approved for behind the wall installations and removes the need for hot works on site. Installation can be reduced by around 40% when compared to traditional fixing methods.

Item Specifications

Angle90 deg
ColorWhite
MaterialPlastic
Nominal Size3/4 in
Operating Temperature-73 to 200 deg F
Pressure Rating80 to 160 psi
Suitable forCopper, CPVC and PEX Pipes
