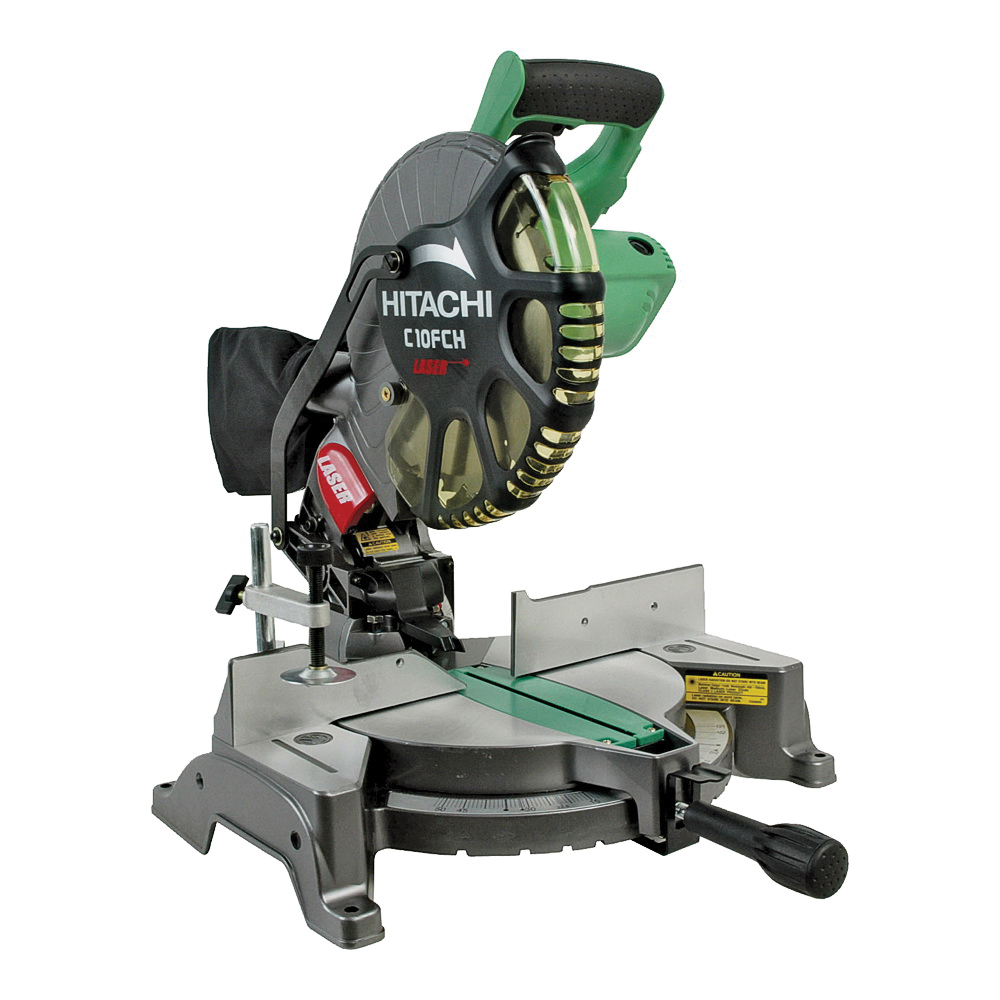

Laser marker system for increased cutting accuracy. Horizontal handle, Large table, large extended fence raises to 4 in for cutting crown molding verticaly. Thumb actuated positive stops for quick miter adjustments. Carbon brush access, allows user to replace brush as needed Dust collector attachment, to minimize airborne particles. Max work piece capacity is 2-5/16 in H by 5-21/32 in W. Specs single-phase 120 VAC 60 Hz motor, 0 to 52 deg miter angle range to the right and left, 0 to 48 deg bevel angle range to the left with adjustable bevel stops. Includes 10 in TCT saw blade, vice assembly with knob bolt, 10 mm box wrench, 4 mm hex bar wrench.
Blade Diameter | 10 in |
---|
Cord Length | 6 ft |
---|
Cutting Capacity | 1-5/8 x 5-21/32 in |
---|
Dimensions | 18.12 in L x 24.75 in W x 22.09 in H |
---|
Includes | 319106 10 in TCT Saw Blade, 322955 Dust Bag, Extended Fence, 944458 Hex Bar Wrench, 322952 Vise Assembly, 940543 Box Wrench |
---|
Maximum Bevel Angle | 45 deg |
---|
Maximum Miter Angle | 52 deg |
---|
Number of Speeds | 1 |
---|
Power Supply | 1520 W |
---|
Speed Rating | 5000 rpm |
---|
