- Body Material: Bronze
- Connection Type: MNPT
- Dimensions: 4 in L x 2 in H
- Flow Rate: 40 to 60 gpm
- Inlet Pressure: 50 psi
- Model #: 0780009
- UPC #: 098268090925
- SKU: 103653331

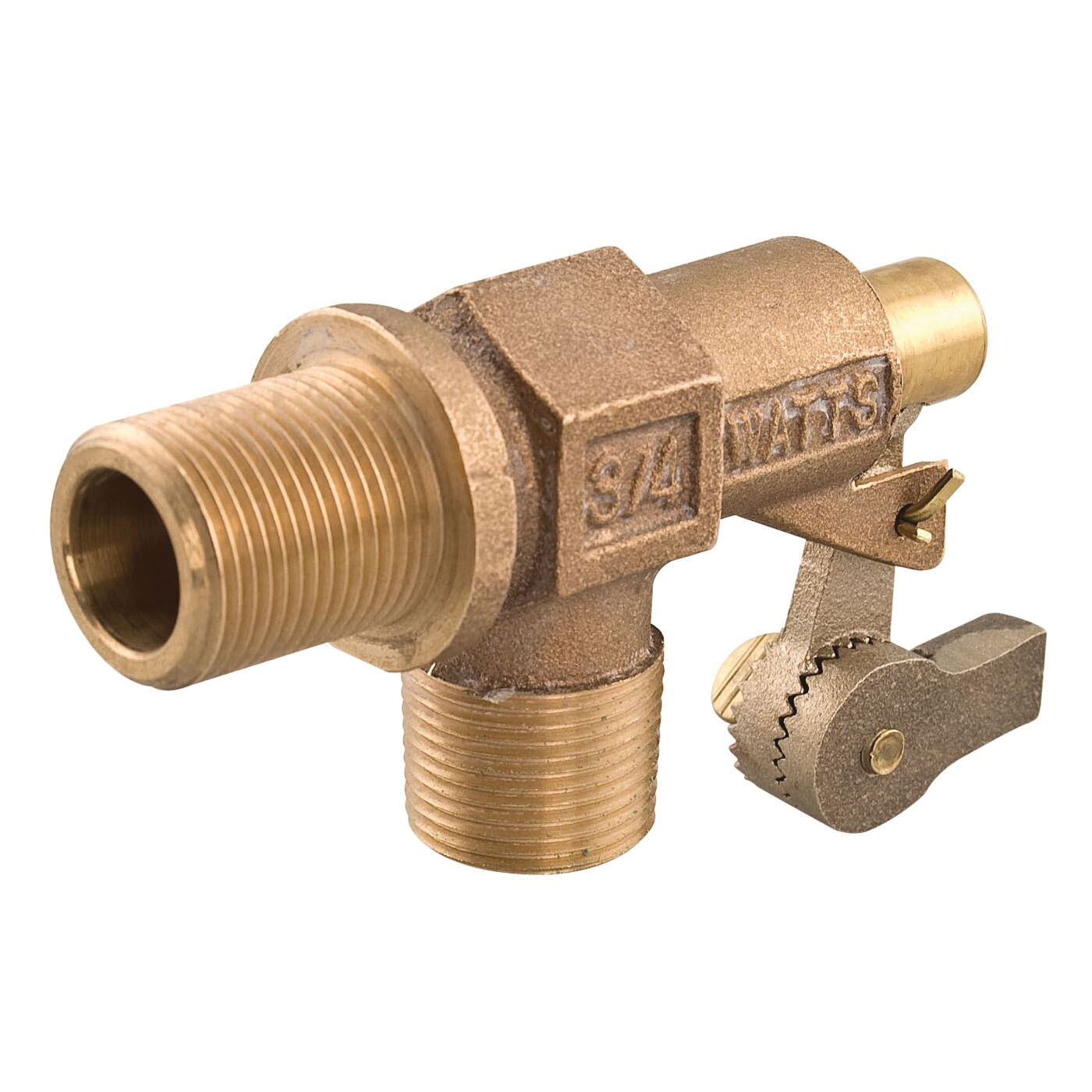

This 3/4 in high-capacity heavy-duty mechanical float valve is used in commercial, industrial and agricultural applications for controlling high-capacity water flow and can be tank wall-mounted. It is ideal for use in air conditioning, refrigeration and irrigation systems. This valve has a bronze body with 3/4 in machine flange on the inlet connection and male straight pipe threaded outlet connection for locknut. It has serrated arms for easy adjustment of water level, bronze long and short arms, replaceable seals and no jam single lever action. The maximum pressure is 165 psi (11.4 bar).
| Body Material | Bronze |
|---|
| Connection Type | MNPT |
|---|
| Dimensions | 4 in L x 2 in H |
|---|
| Flow Rate | 40 to 60 gpm |
|---|
| Inlet Pressure | 50 psi |
|---|
| Mounting Type | Wall |
|---|
| Nominal Size | 3/4 in |
|---|
| Outlet Connection Size | 3/4 in |
|---|
| Pressure Rating | 165 psi |
|---|
| Temperature Rating | 180 deg F |
|---|
